SOLIS SOLUTIONS
Innovation through formulation. Solar system installation services.

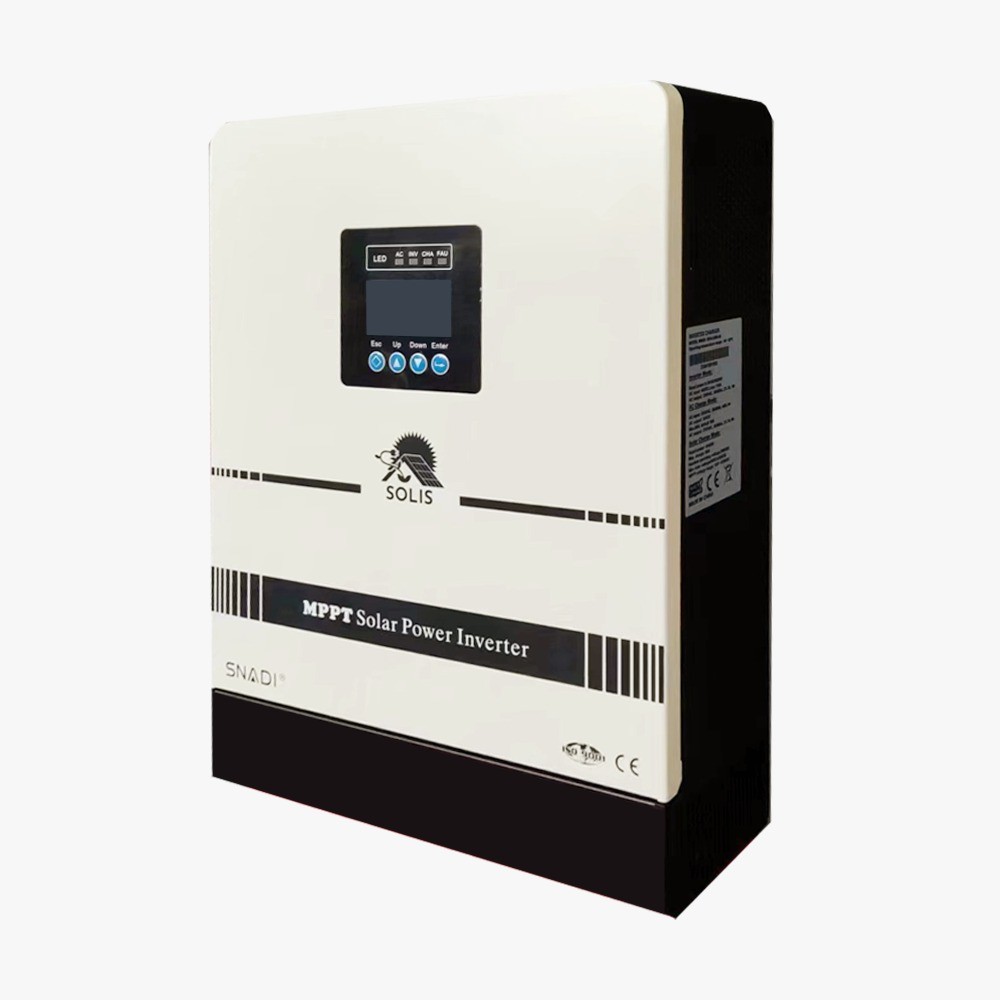

5KW SOLIS NKH High Frequency MPPT Hybrid Inverter (Pure Sine Wave)
- For home appliances and personal computers
- LCD design
- Overload and overcurrent protection
- Smart battery charger for optimized battery performance
- Cold start function
- 2-year warranty on stand-alone unit
- App for active tracking via mobile device.
- 9 parallel connections
Specifications
- Input voltage: 208-240 VAC. Selectable: 170-280 VAC for personal computers and 90-280VAC for home appliances. Frequency range 50-60 Hz (auto sensing).
- Output voltage regulation: 208-240 VAC with surge power 10000 VA. Peak efficiency: battery to inverter 94% and panel to inverter 97%. Transfer time 10ms.
- Overload capacity: 1min @110%, 10sec @130%, 3sec @150% and 0.2 sec@>150%
- Battery and AC charge: Battery voltage 48VDC, Floating charge 54VDC, Overcharge protection 64VDC. Max charge current: 80A.
- PV charge: Max PV 5500W, MPPT range 10-430 VDC, Max charge current 80A at max 98% efficiency.
- Physical: Dimensions 439*320*128 mm, Weight 9.2 Kg
- Operating environment: 5-95% relative humidity, 0-55℃. Store at -15-60 ℃
- SOLIS is proud to announce that we will soon be catering for those consumers with greater energy demands.
- Avoid having to install multiple inverters by choosing our 10KW SOLIS MPPT Hybrid Inverter.
- This unit is ideal for households which have higher than usual energy demands or for small businesses.
- Pair with our SOLIS 15KWH LifePO4 Battery Bank for an extended warranty and better performance.
- Prices coming soon. For a preliminary quote email us at sales@solis-solution.co.za
- SOLIS will be providing a 15KWH LifePO4 Battery Bank for perfect pairing with the new 10KW MPPT Hybrid Inverter.
- Save time, space and money by installing a single 15KWH battery instead of many smaller batteries.
- This unit is ideal for households which have higher than usual energy demands, small businesses or areas that experience long periods of loadshedding and power outages.
- Prices coming soon. For a preliminary quote email us at sales@solis-solution.co.za
SOLIS Life PO4 Lithium Battery Bank
- Grade A CATL approved
- LCD design
- Overload and overcurrent protection
- Smart battery charger for optimized battery performance
- >3000 cycles at 95% DOD
- 5-year warranty. 10 year lifespan
Specifications
- Rated capacity: 5.12KWH
- Nominal voltage: 51.2VDV ( 40-57.6VDC range)
- Charge cut-off voltage: 57.6 VDC
- Max charge and discharge current: 250A
- 1-6 parallel connections
- Working temp range: -20-65℃
Solar panels: JSM-540/72H
- Monocrystalline module 510-540W
- Ideal for large-scale ground installation
- Highly PID resistant
- Sand blowing, salt misting, and ammonia tests passed
- Specialized soldering to reduce hotspot risk
- Highly transparent self-cleaning glass for maximum efficiency and reduced maintenance
- 15-year warranty on material and workmanship
- 25-year linear performance warranty
Our customer-specific solutions
Battery, inverter and panels
(Combo 1)
5 KW home installation
- Warranties if taken as combo
- 2 year on inverter
- 5 year on battery with 10 year lifespan
- 15 year warranty on solar panels
Package includes:
- 1*SOLIS 5KW NKH High-Frequency MPPT Hybrid Inverter (Pure Sine Wave)
- 1*SOLIS LifePO4 5.12KWH Battery Bank
- 6*JSM 540W solar panels
Able to produce up to 20KWH per day plus 5KWH stored electricity in our LifePO4 Battery Bank.
Battery and inverter (Combo 2)
Package includes:
- 1*SOLIS 5KW NKH High-Frequency MPPT Hybrid Inverter (Pure Sine Wave)
- 1*SOLIS 5.12KWH LifePO4 Battery Bank
- Warranties if taken as a combo
- 2 year on inverter
- 5 year on battery with 10 year lifespan
